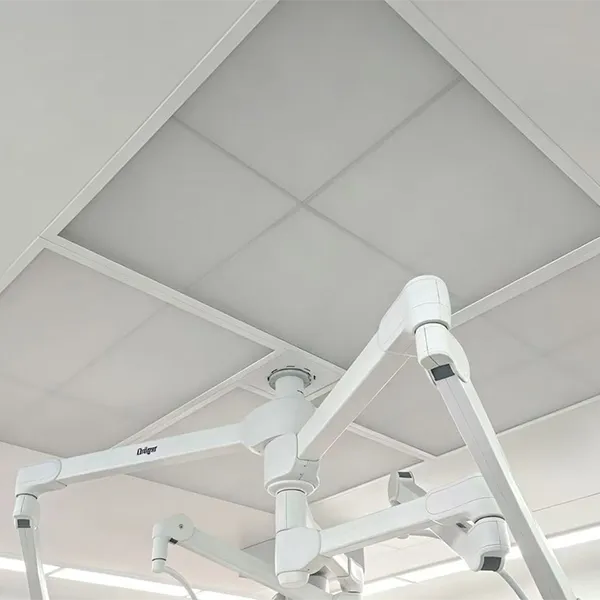

Medical laminar ceiling

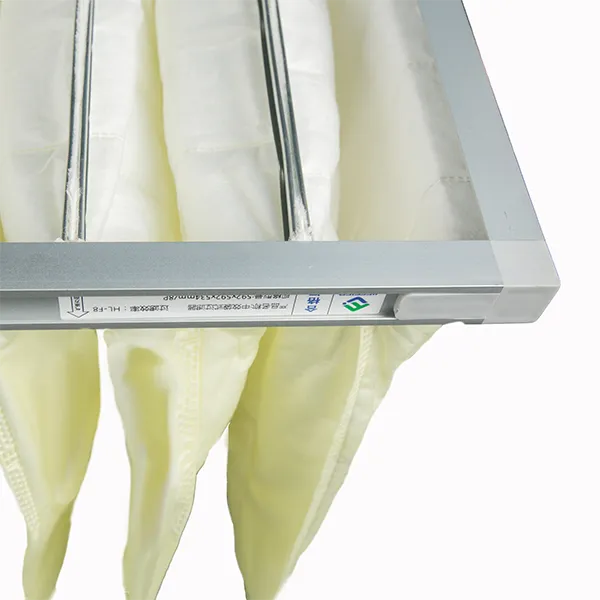

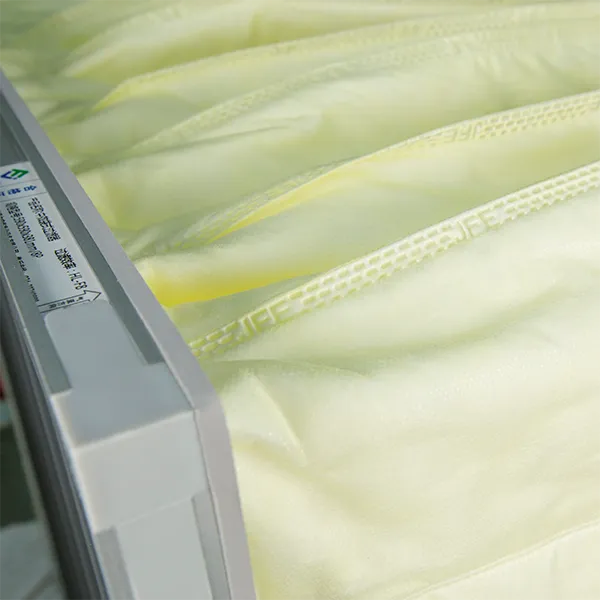

Medium-high efficiency pocket filter JF-MF-BG series
JF-MF-BG series filters, being an important filter element in air conditioning and air purification systems, effectively capture dust particles larger than 1 micron.
Description
marker
Product overview
JF-MF-BG series filters, being an important filter element in air conditioning and air purification systems, effectively capture dust particles larger than 1 micron. With a unique multi-pocket design, they feature large dust capacity, low resistance, stable filtration efficiency and long service life.
Applications
Hospitals, biopharmaceuticals, laboratories, electronic manufacturing, semiconductor factories, Class A office buildings, airports, metro stations and other facilities.
Technical parameters / Recommendations for selection
| Dimensions | width W × height H × thickness D (pay attention to the installation direction of width W) |
| Filtration efficiency | EN 779 (2012): F7 / F8 / F9 |
| Nominal air flow | 500–3500 m³/h |
| Initial resistance | ≤ 75 Pa at a speed of 2.5 m/s. Recommended final resistance: <250 Pa |
| Construction | multi-pocket |
| Filter material | high quality polyester composite fiber, glass fiber |
| Frame material | aluminum profile, galvanized sheet |
| Sealing compound | environmentally friendly latex |
| Sealing gasket | optional |
| Temperature, humidity | <85 °C, humidity: <90% RH |
Selection table for standard sizes
| Number
| Width (W) × Height (H) × Depth (D)
| Number of packages (pcs.)
| Air flow range, m³/h
| Initial resistance, Pa
| |||
| inch
| mm
| F7 | F8 | F9 | |||
| 1 | 12×12×15 | 290×290×381 | 4 | 600-800 | ≤80 | ≤90 | ≤110 |
| 2 | 12×20×15 | 290×494×381 | 4 | 1000-1300 | ≤80 | ≤90 | ≤110 |
| 3 | 12×24×15 | 290×594×381 | 4 | 1400-1600 | ≤80 | ≤90 | ≤110 |
| 4 | 20×20×15 | 494×494×381 | 6 | 1700-2200 | ≤80 | ≤90 | ≤110 |
| 5 | 20×24×15 | 494×594×381 | 6 | 2300-2600 | ≤80 | ≤90 | ≤110 |
| 6 | 24×24×15 | 594×594×381 | 8 | 2800-3200 | ≤80 | ≤90 | ≤110 |
| 7 | 12×12×21 | 290×290×534 | 3 | 600-900 | ≤75 | ≤85 | ≤105 |
| 8 | 12×20×21 | 290×494×534 | 3 | 1100-1400 | ≤75 | ≤85 | ≤105 |
| 9 | 12×24×21 | 290×594×534 | 3 | 1500-1700 | ≤75 | ≤85 | ≤105 |
| 10 | 20×20×21 | 494×494×534 | 5 | 2000-2500 | ≤75 | ≤85 | ≤105 |
| 11 | 20×24×21 | 494×594×534 | 5 | 3000-3200 | ≤75 | ≤85 | ≤105 |
| 12 | 24×24×21 | 594×594×534 | 6 | 3200-3500 | ≤75 | ≤85 | ≤105 |
Note: Sizes can be customized, actual size with negative tolerance ≥ -1mm
contact us
Related Popular Products
Highly efficient supply air diffuser with top filter replacement
The high-efficiency supply grille with top filter replacement is equipped with a top high-efficiency filter, which allows for quick dismantling and installation of the filter element in the technical space of the air duct.
Valve series
The air flow control valve is a key element of the ventilation system, ensuring the balance of air flow. It allows you to accurately regulate air flow, balance the pressure drop in the system, as well as stabilize temperature, humidity and the organization of air flow in the room.
Medium-high efficiency panel filter JF-MF-PL series
Filters of the JF-MF-PL series are specially designed for highly efficient filtration in the supply chambers of air conditioners. They are flexibly coupled with mounting modules and differ from pocket filters in that they require less space with a higher degree of filtration.
Sealed exhaust grille
A sealed exhaust valve is a device used in ventilation systems to exhaust air, which features high filtration efficiency and low air flow resistance.
JFLS series air shower
In high cleanliness environments, the air shower chamber is the primary cleaning equipment to control contamination and particles in personnel and cargo aisles.
JF-HF-SG Series High Efficiency Side Gel Seal Filter
High efficiency filters with gel seal JF-HF-SG series. They are based on a sealed design using silicone gel in a semi-cured state.
JF-UF-NP Series Ultra High Efficiency Low Resistance Filter
JF-UF-NP series ultra-high efficiency PTFE filters, which use porous polytetrafluoroethylene (ePTFE) membrane filter material as the main filter material, have chemical stability, low resistance and high efficiency compared with glass fiber filter materials.
Direct exhaust exhaust unit
The direct exhaust ventilation units are based on the digital EC inverter fan, which combines the advantages of ultra-thin design, low noise and thermal bridge protection, allowing direct air exhaust without the need for complex ductwork.
JCD-ZP Series Transfer Window
The transfer hatch is an auxiliary equipment for transferring objects, designed specifically for cleanrooms. Its main function is to create a sealed channel for the transfer of objects between clean and unclean zones, as well as between zones with different levels of cleanliness.
JF-HF-TG Series High Efficiency Top Gel Seal Filter
High efficiency filters with gel seal JF-HF-TG series. They are based on a sealed design using silicone gel in a semi-cured state.
Sub-high efficiency filter JF-EF-NP series
Filters of the JF-EF-NP series are most often used as final cleaning filters in the supply chambers of air conditioners. Their main function is to reduce the load on the final high-efficiency filters installed behind them, extending their service life and reducing the frequency of replacement.
New supply and exhaust treatment plant
The new air supply and exhaust unit combines the functions of fresh air supply, exhaust and ventilation, highly efficient cleaning and temperature control. By replacing indoor and outdoor air, combined with multi-stage filtration and purification, it continuously removes polluted indoor air and supplies clean fresh air, performing the dual function of ventilation and air purification.
JF-HF-SP Series High Efficiency Baffle Filter
JF-HF-SP series filters, used as high-efficiency filters compatible with end air distributors, are characterized by high air flow capacity, high air velocity at the front surface, low resistance, high efficiency, large dust capacity and improved durability.
Zero-leakage exhaust grille with on-site disinfection capability
Features a fully sealed, zero-leakage design, supporting sealed on-site equipment disinfection and DOP testing without the need for disassembly and assembly. Effectively prevents the leakage of harmful gases, prevents cross-contamination and ensures biosafety throughout the entire process.
JF-MF-AC Series Chemical Filter
JF-MF-AC series three-component chemical filter is specially designed to remove fluoride, acid-base gas pollutants. The purification efficiency can reach ≥99%, which can stably control harmful gases at ppb level and effectively capture various corrosive and harmful gas pollutants, ensuring a safe clean environment.

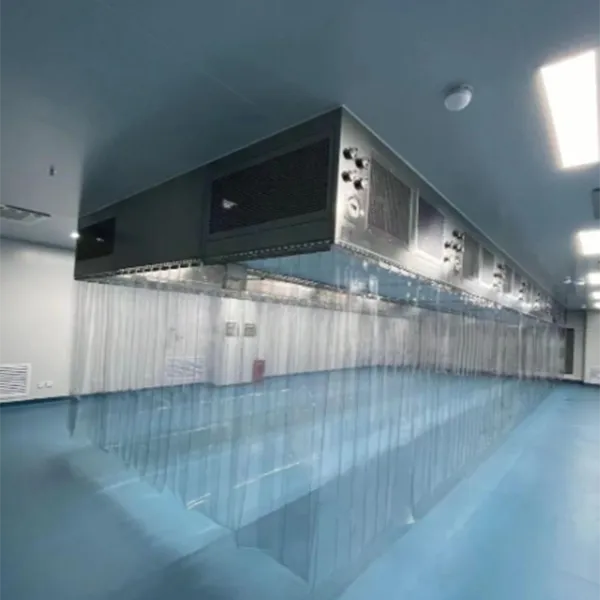

Class 100 Laminar Ceiling Dome
